Alarm Pod
Thread (Border) Router, Wi-Fi sensing node and siren
SensePod
Thread (Border) Router, Wi-Fi sensing node
SensePlug
Thread (Border) Router, Wi-Fi sensing node and smart plug
*Available in 5 plug types
Alarm Pod
Wi-Fi + Thread
General
| Dimensions (H x W x D) | 95.0 × 95.0 × 35.0 mm (3.74 × 3.74 × 1.38 in) |
| Power Requirements | DC 5V | Max 1A |
| Backup Battery Lifetime | Up to 3 hours |
| Alarm Rating | 98 dB |
| Material | PC |
| LED | 1 × RGB Status LED |
| Button | 1 × Reset Button |
Network
| Protocol | IEEE 802.11b/g/n, IEEE 802.15.4 |
| Wireless Type | Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ +45°C (14°F ~ 113°F) | 0% ~ 90% R.H. |
| Certifications | CE, FCC, MIC, ROHS |

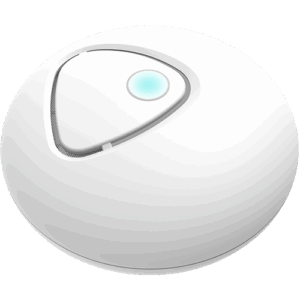

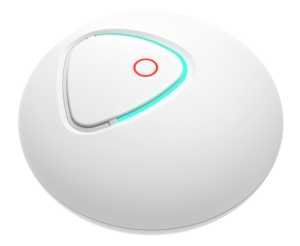

SensePod
Wi-Fi + Thread
General
| Dimensions (H x W x D) | 95.0 × 95.0 × 35.0 mm (3.74 × 3.74 × 1.38 in) |
| Power Requirements | DC 5V | Max 1A |
| Backup Battery Lifetime | Up to 3 hours |
| Material | PC |
| LED | 1 × RGB Status LED |
| Button | 1 × Reset Button |
Network
| Protocol | IEEE 802.11b/g/n, IEEE 802.15.4 |
| Wireless Type | Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ +45°C (14°F ~ 113°F) | 0% ~ 90% R.H. |
| Certifications | CE, FCC, MIC, ROHS |
SensePlug (Type A)
Wi-Fi + Thread
General
| Dimensions (H x W x D) | 74.7 × 36.1 × 48.8 mm (2.94 × 1.42 × 1.92 in) |
| Power Requirements | AC 100V~ | 50/60Hz |
| Maximum Load | 15A, 1500W | General use, Resistive load |
| Material | PC |
| LED | 1 × RGB Status LED, 1 x White Power Button LED |
| Button | 1 × Power Button |
Network
| Protocol | IEEE 802.11b/g/n, IEEE 802.15.4 |
| Wireless Type | Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ +40°C (14°F ~ 104°F) | 0% ~ 90% R.H. |
| Certifications | PSE, MIC, ROHS |
| Safety Features | IP20 Dust Protection Class I IEC Electrical Appliance Protection |
SensePlug (Type B)
Wi-Fi + Thread
General
| Dimensions (H x W x D) | 2.94 × 1.42 × 1.92 in (74.7 × 36.1 × 48.8 mm) |
| Power Requirements | AC 120-230V~ | 50/60Hz |
| Maximum Load | 15A, 1800W | General use, Resistive load |
| Material | PC |
| LED | 1 × RGB Status LED, 1 × White Power Button LED |
| Button | 1 x Power Button |
Network
| Protocol | IEEE 802.11b/g/n, IEEE 802.15.4 |
| Wireless Type | Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | 14°F ~ 104°F (-10°C ~ +40°C) | 0% ~ 90% R.H. |
| Certifications | ETL, FCC, ROHS |
| Safety Features | IP20 Dust Protection Class I IEC Electrical Appliance Protection |
SensePlug (Type E)
Wi-Fi + Thread
General
| Dimensions (H x W x D) | 77.2 × 57.2 × 74.7 mm (3.04 × 2.25 × 2.94 in) |
| Power Requirements | AC 230V~ | 50/60Hz |
| Maximum Load | 16A, 3680W | General use, Resistive load |
| Material | PC |
| LED | 1 × RGB Status LED, 1 × White Power Button LED |
| Button | 1 × Power Button |
Network
| Protocol | IEEE 802.11b/g/n, IEEE 802.15.4 |
| Wireless Type | Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ +40°C (14°F ~ 104°F) | 0% ~ 90% R.H. |
| Certifications | CE, ROHS |
| Safety Features | IP20 Dust Protection Class I IEC Electrical Appliance Protection |
SensePlug (Type F)
Wi-Fi + Thread
General
| Dimensions (H x W x D) | 77.2 × 57.2 × 74.7 mm (3.04 × 2.25 × 2.94 in) |
| Power Requirements | AC 230V~ | 50/60Hz |
| Maximum Load | 16A, 3680W | General use, Resistive load |
| Material | PC |
| LED | 1 × RGB Status LED, 1 × White Power Button LED |
| Button | 1 × Power Button |
Network
| Protocol | IEEE 802.11b/g/n, IEEE 802.15.4 |
| Wireless Type | Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ +40°C (14°F ~ 104°F) | 0% ~ 90% R.H. |
| Certifications | CE, ROHS |
| Safety Features | IP20 Dust Protection Class I IEC Electrical Appliance Protection |
SensePlug (Type G)
Wi-Fi + Thread
General
| Dimensions (H x W x D) | 70.0 × 55.0 × 60.2 mm (2.76 × 2.17 × 2.37 in) |
| Power Requirements | AC 230V~ | 50/60Hz |
| Maximum Load | 13A, 2990W | General use, Resistive load |
| Material | PC |
| LED | 1 × RGB Status LED, 1 × White Power Button LED |
| Button | 1 × Power Button |
Network
| Protocol | IEEE 802.11b/g/n, IEEE 802.15.4 |
| Wireless Type | Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ +45°C (14°F ~ 113°F) | 0% ~ 90% R.H. |
| Certifications | CE, UKCA, ROHS |
| Safety Features | IP20 Dust Protection Class I IEC Electrical Appliance Protection |
