Security Pod
Wi-Fi sensing node and siren
Wi-Fi Sensor
Wi-Fi sensing node and smart plug
Available in 5 plug types
Security Pod
Wi-Fi
General
| Dimensions (H x W x D) | 95.0 × 95.0 × 35.0 mm (3.74 × 3.74 × 1.38 in) |
| Power Requirements | DC 5V/ Max 650mA — |
| Alarm Rating | 90 dB |
| Material | PC |
Network
| Protocol | IEEE 802.11b/g/n, IEEE 802.15.4 |
| Wireless Type | Wi-Fi 2.4Ghz, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ +45°C (4F ~ 113F) | 0% ~ 90% R.H. |
| Certifications | CE, ROHS |

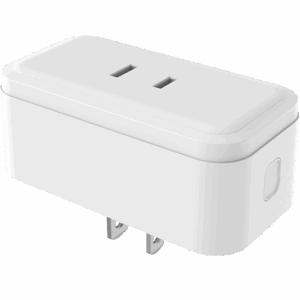

Wi-Fi Sensor (Type A)
Wi-Fi
General
| Dimensions (H x W x D) | 76.0 × 40.0 × 32.0 mm |
| Power Requirements | AC 100V~ | 50/60Hz |
| Maximum Load | 15A, 1500W | General use, Resistive load |
| Material | PC |
| Button | 1 × Relay Switch Button |
Network
| Protocol | IEEE 802.11b/g/n |
| Wireless Type | Wi-Fi 2.4Ghz, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ 40°C | 0% ~ 90% R.H. |
| Certifications | PSE, MIC, ROHS |
| Safety Features | IP20 Dust Protection Class IEC Electrical Appliance Protection |

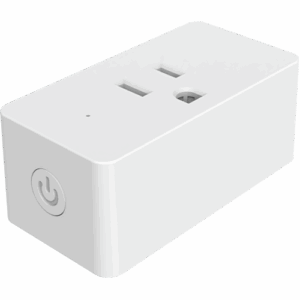

Wi-Fi Sensor (Type B)
Wi-Fi
General
| Dimensions (H x W x D) | 2.91 × 1.52 × 2.00 in |
| Power Requirements | AC 125V~ 60Hz |
| Maximum Load | 15A, 1875W | General use, Resistive load |
| Material | PC |
| Button | 1 × Relay Switch Button |
Network
| Protocol | IEEE 802.11b/g/n |
| Wireless Type | Wi-Fi 2.4Ghz, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ +45°C | 0% ~ 90% R.H. |
| Certifications | CE, ROHS |
| Safety Features | IP20 Dust Protection Class IEC Electrical Appliance Protection |

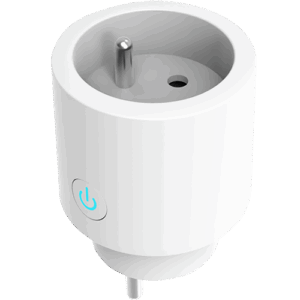

Wi-Fi Sensor (Type E)
Wi-Fi
General
| Dimensions (H x W x D) | 51.9 × 51.9 × 85.6 mm |
| Power Requirements | AC 230V~ | 50Hz |
| Maximum Load | 10A, 2300W | General use, Resistive load |
| Material | PC |
| Button | 1 × Relay Switch Button |
Network
| Protocol | IEEE 802.11b/g/n |
| Wireless Type | Wi-Fi 2.4Ghz, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ +45°C | 0% ~ 90% R.H. |
| Certifications | CE, ROHS |
| Safety Features | IP20 Dust Protection Class IEC Electrical Appliance Protection |

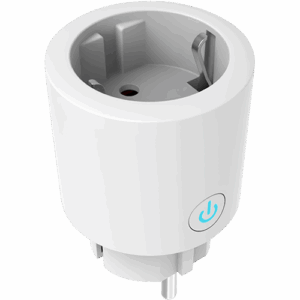

Wi-Fi Sensor (Type F)
Wi-Fi
General
| Dimensions (H x W x D) | 51.9 × 51.9 × 85.6 mm |
| Power Requirements | AC 230V~ | 50Hz |
| Maximum Load | 10A, 2300W | General use, Resistive load |
| Material | PC |
| Button | 1 × Relay Switch Button |
Network
| Protocol | IEEE 802.11b/g/n |
| Wireless Type | Wi-Fi 2.4Ghz, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ +45°C | 0% ~ 90% R.H. |
| Certifications | CE, ROHS |
| Safety Features | IP20 Dust Protection Class IEC Electrical Appliance Protection |
Wi-Fi Sensor (Type G)
Wi-Fi
General
| Dimensions (H x W x D) | 58.0 × 58.0 × 64.0 mm |
| Power Requirements | AC 240V~ | 50Hz |
| Maximum Load | 13A, 3120W | General use, Resistive load |
| Material | PC |
| Button | 1 × Relay Switch Button |
Network
| Protocol | IEEE 802.11b/g/n |
| Wireless Type | Wi-Fi 2.4Ghz, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ +45°C | 0% ~ 90% R.H. |
| Certifications | UKCA, ROHS |
| Safety Features | IP20 Dust Protection Class IEC Electrical Appliance Protection |
