Door Sensor
For additional entries, windows, or garage access
PIR Motion Sensor
For focused detection zones such as hallways or bedrooms
Keypad
For multi-access points arming and disarming

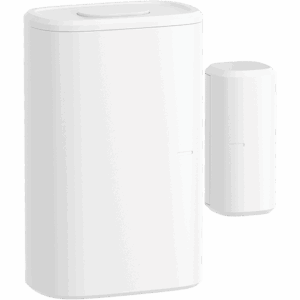

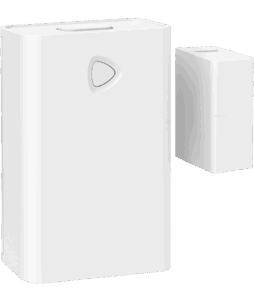

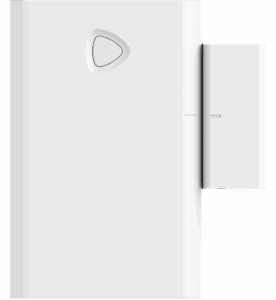

Door Sensor
Thread
General
| Dimensions (H x W x D) | Sensor: 50.5 × 32.0 × 21.9 mm (1.99 × 1.26 × 0.86 in) Magnet: 27.0 × 12.0 × 12.4 mm (1.06 × 0.47 × 0.49 in) |
| Power Requirements | Battery powered 3VDC, 1× CR2477 |
| Battery Lifetime | Up to 4 years |
| Material | PC |
| LED | 1 x White Power Button LED |
| Button | 1 x Reset Button |
| Max Gap Between Sensor & Magnet | 20mm |
Network
| Protocol | IEEE 802.15.4 |
| Wireless Type | Thread, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ +50°C (14°F ~ 122°F) | 0% ~ 90% R.H. |
| Certifications | FCC, CE, MIC, UL4200A, ROHS |
| Safety Features | IP20 Dust Protection |

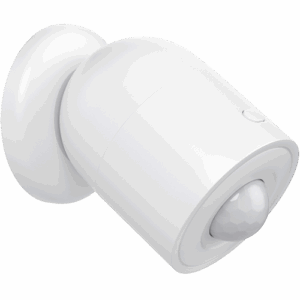

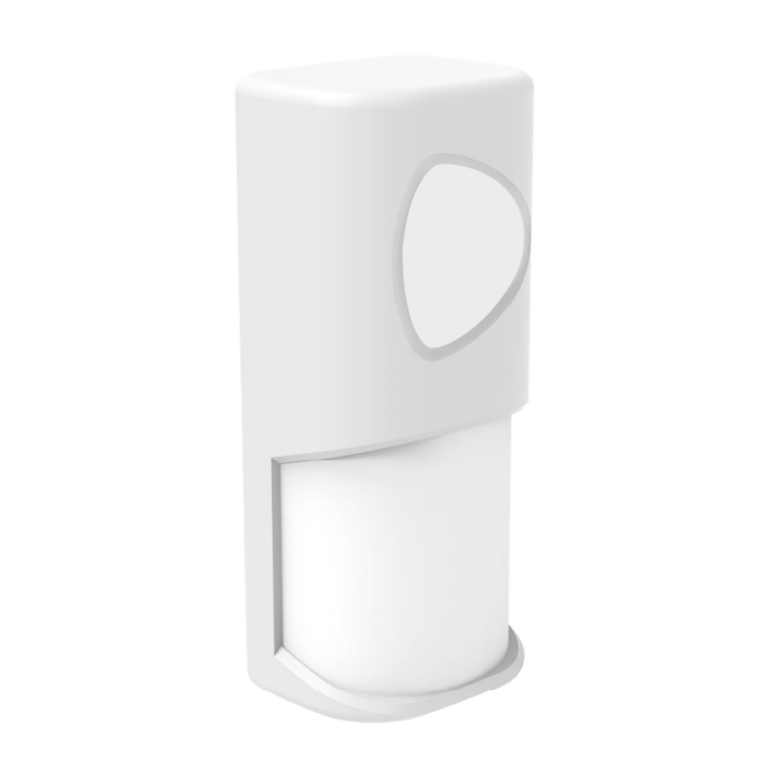

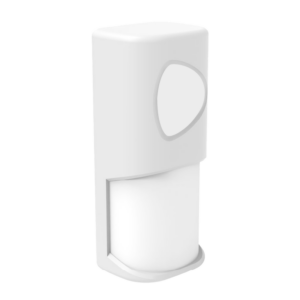

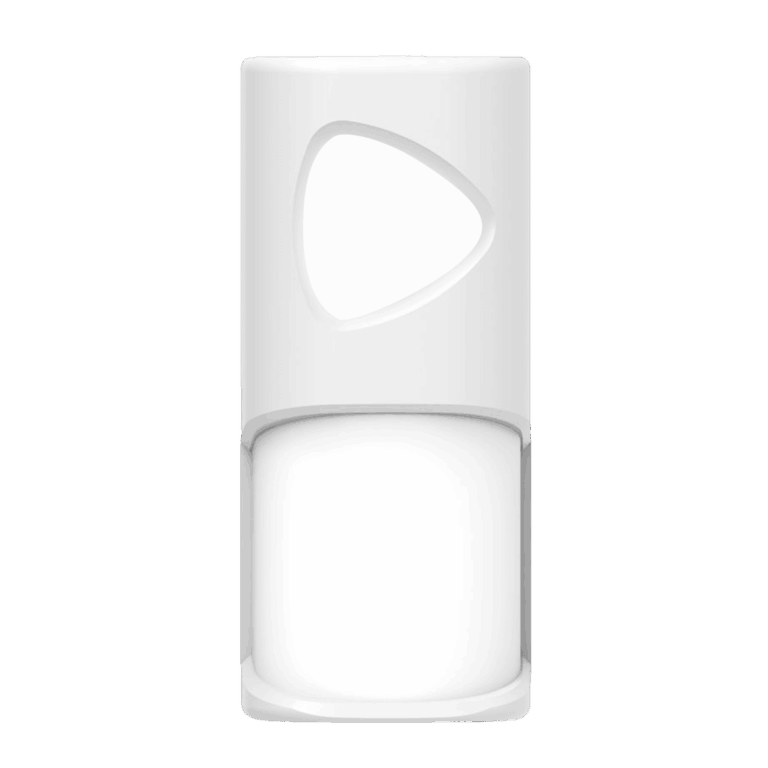

PIR Motion Sensor
Thread
General
| Dimensions (H x W x D) | 65.0 × 44.0 × 44.0 mm (2.55 × 1.73 × 1.73 in) |
| Power Requirements | Battery powered 3VDC, 1 × CR2477 |
| Battery Lifetime | Up to 2 years |
| Material | PC |
| LED | 1 × White Status LED |
| Button | 1 × Reset Button |
| Detection Range | 6m at 110° field of view |
Network
| Protocol | IEEE 802.15.4 |
| Wireless Type | Thread, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ +50°C (14°F ~ 122°F) | 0% ~ 90% R.H. |
| Certifications | FCC, CE, MIC, UL4200A, ROHS |
| Safety Features | IP20 Dust Protection |
Keypad
Thread
General
| Dimensions (H x W x D) | 62.0 × 98.0 × 21.8 mm (2.44 × 3.86 × 0.86 in) |
| Power Requirements | Battery powered, 3× AAA |
| Battery Lifetime | Up to 2 years |
| Material | PC |
| LED | 1 × White Power Button LED |
| Buttons | Mode, Numeric 0-9, Clear & SOS |
Network
| Protocol | IEEE 802.15.4 |
| Wireless Type | Thread, Bluetooth 5 (For onboarding) |
Operating Conditions
| Work Environment | -10°C ~ +50°C (14°F ~ 122°F) | 0% ~ 90% R.H. |
| Certifications | FCC, CE, MIC, ROHS |
| Safety Features | IP20 Dust Protection |
