nami Setup App

Ready-to-use onboarding experience for nami devices and systems

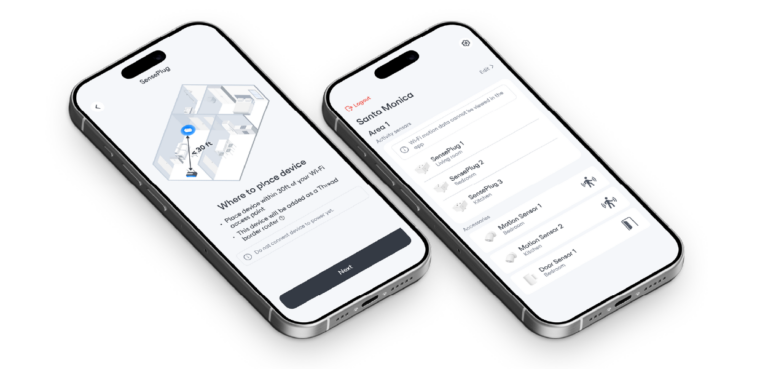

Setup App Dashbord and Onboarding Screen

nami gives you the choice to use our SDK or the nami Setup App to install and configure its solutions.

The nami Setup App — which integrates the nami SDK with a ready-to-use UI — simplifies the onboarding and configuration of nami devices and complete systems. It enables partners to quickly activate devices for data collection and IoT device management, without having to build or maintain their own setup and provisioning flows.

By choosing the Setup App, partners can stay focused on their own applications and dashboards — operating, monitoring, and delivering value—while nami handles device onboarding, configuration, and best-practice guidance.

The Setup App is available in 9 languages (with more to come) for both full kit onboarding and incremental device installation. It shares the same refined user experience as the nami SDK UI, including step-by-step guidance, do & don’t recommendations, and tutorials for optimal device placement.

During or after onboarding, the Setup App can also be used to configure devices directly, with options such as sensitivity settings.

The nami Setup App is designed to provision devices connected to the nami API and integrated with Property Awareness apps, Enterprise dashboards, Care apps, or TeleCare platforms.

The nami Setup App is not brandable. For partners seeking a fully branded, end-to-end software experience with complete UI control, we recommend using the nami SDK, which includes optional comprehensive UI flows.

Today, the nami Setup App can be directly experienced for testing with the nami Dashboard for Wellness & Personal Awareness. For testing Property Awareness topologies and use cases, we recommend using Lookout24, nami’s integrated testing application, which incorporates onboarding flows similar to the nami Setup App.

PIR Motion Sensor Angled View
PIR Motion Sensor Front View

PIR Motion Sensor

Thread

General

Dimensions (H x W x D)65.0 × 44.0 × 44.0 mm (2.55 × 1.73 × 1.73 in)
Power RequirementsBattery powered 3VDC, 1 × CR2477
Battery LifetimeUp to 2 years
MaterialPC
LED1 × White Status LED
Button1 × Reset Button
Detection Range6m at 110° field of view

Network

ProtocolIEEE 802.15.4
Wireless TypeThread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +50°C (14°F ~ 122°F) | 0% ~ 90% R.H.
CertificationsFCC, CE, MIC, UL4200A, ROHS
Safety FeaturesIP20 Dust Protection
Bluetooth and Thread Logo
Keypad Angle View

Keypad

Thread

General

Dimensions (H x W x D)62.0 × 98.0 × 21.8 mm (2.44  × 3.86 × 0.86 in)
Power RequirementsBattery powered, 3× AAA
Battery LifetimeUp to 2 years
MaterialPC
LED1 × White Power Button LED
ButtonsMode, Numeric 0-9, Clear & SOS

Network

ProtocolIEEE 802.15.4
Wireless TypeThread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +50°C (14°F ~ 122°F) | 0% ~ 90% R.H.
CertificationsFCC, CE, MIC, ROHS
Safety FeaturesIP20 Dust Protection
Bluetooth and Thread Logo
Door Sensor Angle View
Door Sensor Front View

Door Sensor

Thread

General

Dimensions (H x W x D)Sensor: 50.5 × 32.0 × 21.9 mm (1.99 × 1.26 × 0.86 in)
Magnet: 27.0 × 12.0 × 12.4 mm (1.06 × 0.47 × 0.49 in)
Power RequirementsBattery powered 3VDC, 1× CR2477
Battery LifetimeUp to 4 years
MaterialPC
LED1 x White Power Button LED
Button1 x Reset Button
Max Gap Between Sensor & Magnet20mm

Network

ProtocolIEEE 802.15.4
Wireless TypeThread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +50°C (14°F ~ 122°F) | 0% ~ 90% R.H.
CertificationsFCC, CE, MIC, UL4200A, ROHS
Safety FeaturesIP20 Dust Protection
Bluetooth and Thread Logo
Angle view of SensePlug Type A with Cyan LED
Front view of SensePlug Type A with Cyan LED

SensePlug (Type A)

Wi-Fi + Thread

General

Dimensions (H x W x D)74.7 × 36.1 × 48.8 mm (2.94 × 1.42 × 1.92 in)
Power RequirementsAC 100V~ | 50/60Hz
Maximum Load15A, 1500W | General use, Resistive load
MaterialPC
LED1 × RGB Status LED, 1 x White Power Button LED
Button1 × Power Button

Network

Protocol IEEE 802.11b/g/n, IEEE 802.15.4
Wireless Type Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +40°C (14°F ~ 104°F) | 0% ~ 90% R.H.
CertificationsPSE, MIC, ROHS
Safety FeaturesIP20 Dust Protection
Class I IEC Electrical Appliance Protection
Wi-Fi, Bluetooth and Thread Logo
Angle view of SensePlug Type B with Cyan LED
Front view of SensePlug Type B with Cyan LED

SensePlug (Type B)

Wi-Fi + Thread

General

Dimensions (H x W x D)2.94 × 1.42 × 1.92 in (74.7 × 36.1 × 48.8 mm)
Power RequirementsAC 120-230V~ | 50/60Hz
Maximum Load15A, 1800W | General use, Resistive load
MaterialPC
LED1 × RGB Status LED, 1 × White Power Button LED
Button1 x Power Button

Network

Protocol IEEE 802.11b/g/n, IEEE 802.15.4
Wireless Type Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment 14°F ~ 104°F (-10°C ~ +40°C) | 0% ~ 90% R.H.
CertificationsETL, FCC, ROHS
Safety FeaturesIP20 Dust Protection
Class I IEC Electrical Appliance Protection
Wi-Fi, Bluetooth and Thread Logo
Angle view of SensePlug Type E with Cyan LED
Front view of SensePlug Type E with Cyan LED

SensePlug (Type E)

Wi-Fi + Thread

General

Dimensions (H x W x D)77.2 × 57.2 × 74.7 mm (3.04 × 2.25 × 2.94 in)
Power RequirementsAC 230V~ | 50/60Hz
Maximum Load16A, 3680W | General use, Resistive load
MaterialPC
LED1 × RGB Status LED, 1 × White Power Button LED
Button1 × Power Button

Network

Protocol IEEE 802.11b/g/n, IEEE 802.15.4
Wireless Type Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +40°C (14°F ~ 104°F) | 0% ~ 90% R.H.
CertificationsCE, ROHS
Safety FeaturesIP20 Dust Protection
Class I IEC Electrical Appliance Protection
Wi-Fi, Bluetooth and Thread Logo
Angle view of SensePlug Type F with Cyan LED
Front view of SensePlug Type F with Cyan LED

SensePlug (Type F)

Wi-Fi + Thread

General

Dimensions (H x W x D)77.2 × 57.2 × 74.7 mm (3.04 × 2.25 × 2.94 in)
Power RequirementsAC 230V~ | 50/60Hz
Maximum Load16A, 3680W | General use, Resistive load
MaterialPC
LED1 × RGB Status LED, 1 × White Power Button LED
Button1 × Power Button

Network

Protocol IEEE 802.11b/g/n, IEEE 802.15.4
Wireless Type Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +40°C (14°F ~ 104°F) | 0% ~ 90% R.H.
CertificationsCE, ROHS
Safety FeaturesIP20 Dust Protection
Class I IEC Electrical Appliance Protection
Wi-Fi, Bluetooth and Thread Logo
Angle view of SensePlug Type G with Cyan LED
Front view of SensePlug Type G with Cyan LED

SensePlug (Type G)

Wi-Fi + Thread

General

Dimensions (H x W x D)70.0 × 55.0 × 60.2 mm (2.76 × 2.17 × 2.37 in)
Power RequirementsAC 230V~ | 50/60Hz
Maximum Load13A, 2990W | General use, Resistive load
MaterialPC
LED1 × RGB Status LED, 1 × White Power Button LED
Button1 × Power Button

Network

Protocol IEEE 802.11b/g/n, IEEE 802.15.4
Wireless Type Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +45°C (14°F ~ 113°F) | 0% ~ 90% R.H.
CertificationsCE, UKCA, ROHS
Safety FeaturesIP20 Dust Protection
Class I IEC Electrical Appliance Protection
Wi-Fi, Bluetooth and Thread Logo
Alarm Pod with Cyan LED

Alarm Pod

Wi-Fi + Thread

General

Dimensions (H x W x D)95.0 × 95.0 × 35.0 mm (3.74 × 3.74 × 1.38 in)
Power RequirementsDC 5V | Max 1A
Backup Battery LifetimeUp to 3 hours
Alarm Rating98 dB
MaterialPC
LED1 × RGB Status LED
Button1 × Reset Button

Network

Protocol IEEE 802.11b/g/n, IEEE 802.15.4
Wireless Type Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +45°C (14°F ~ 113°F) | 0% ~ 90% R.H.
CertificationsCE, FCC, MIC, ROHS
Wi-Fi, Bluetooth and Thread Logo
