SDK

Integrate effortlessly with ready-to-use UI

nami SDK allows you to integrate our sensing experience directly into your iOS and Android apps — without having to design, build, or maintain new user interface. From device installation to setting configurations, we’ll handle it for you.

Inside the nami SDK UI

The SDK provides intuitive interfaces for the core user flows, supporting key use cases across Security, Care, and Internet Service Providers (ISPs). Built for versatility, the SDK continues to evolve to support new markets and emerging use cases.

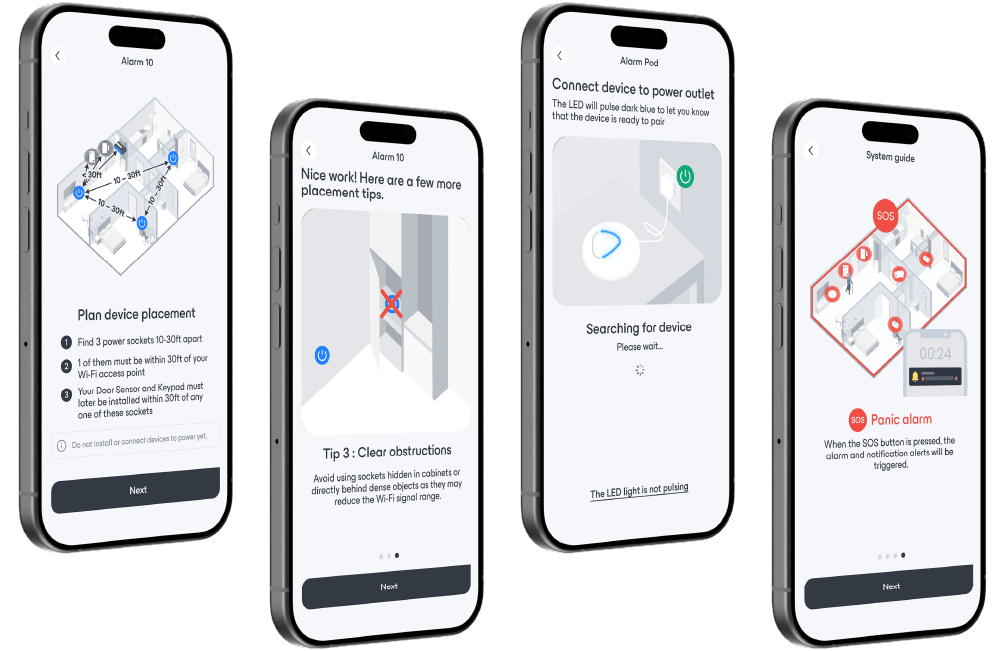

4 nami Commissioning Screens

Kits & Device Commissioning

Onboarding is the first step to a successful sensing experience. All setup screens and installation flows are ready out of the box with the SDK for single devices and kits with multiple devices.

The interface is designed with step-by-step guidance, along with accompanying animation and visuals so users can easily:

  • Optimize their device placement
  • Commission of kits and devices
  • Verify devices are correctly set up and ready to use

System Settings

The SDK also provides consistent and intuitive screens for essential settings users need to manage their system, including:

  • Adjusting Wi-Fi motion sensitivity
  • Updating Wi-Fi credentials
  • Configuring entry and exit delays
  • Managing Keypad PINs

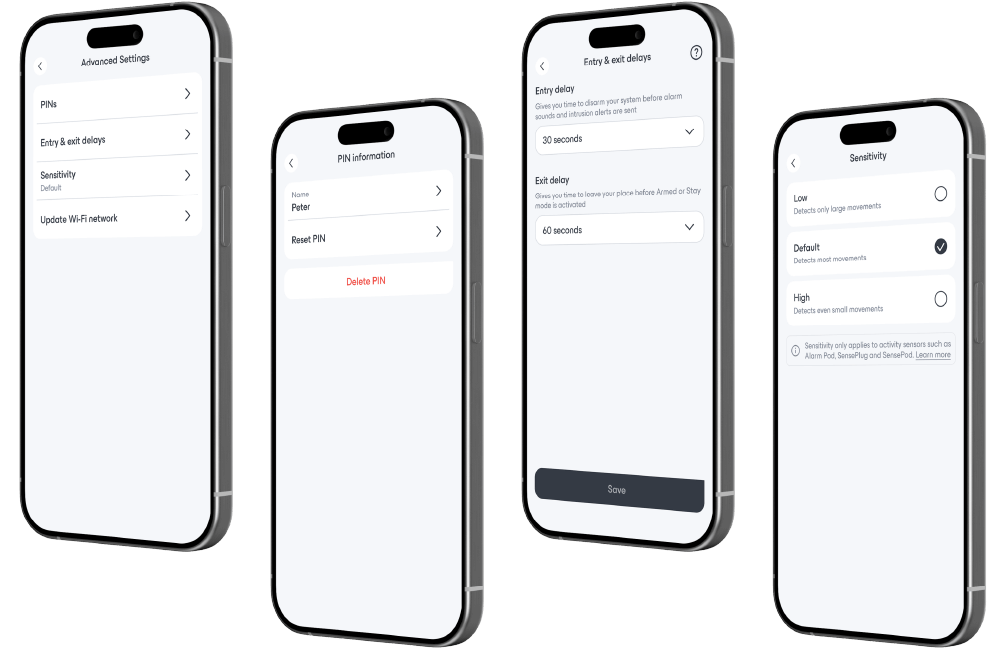

4 nami setting screens

Global-Ready UI

nami SDK supports English Français Deutsch Italiano Türkçe Polski Português 日本語 Español

The nami SDK UI comes fully localized in 9 languages including English, French, German, Italian, Turkish, Polish, Portuguese, Japanese, and Spanish. More languages will be added as the SDK evolves, ensuring global-ready integration.

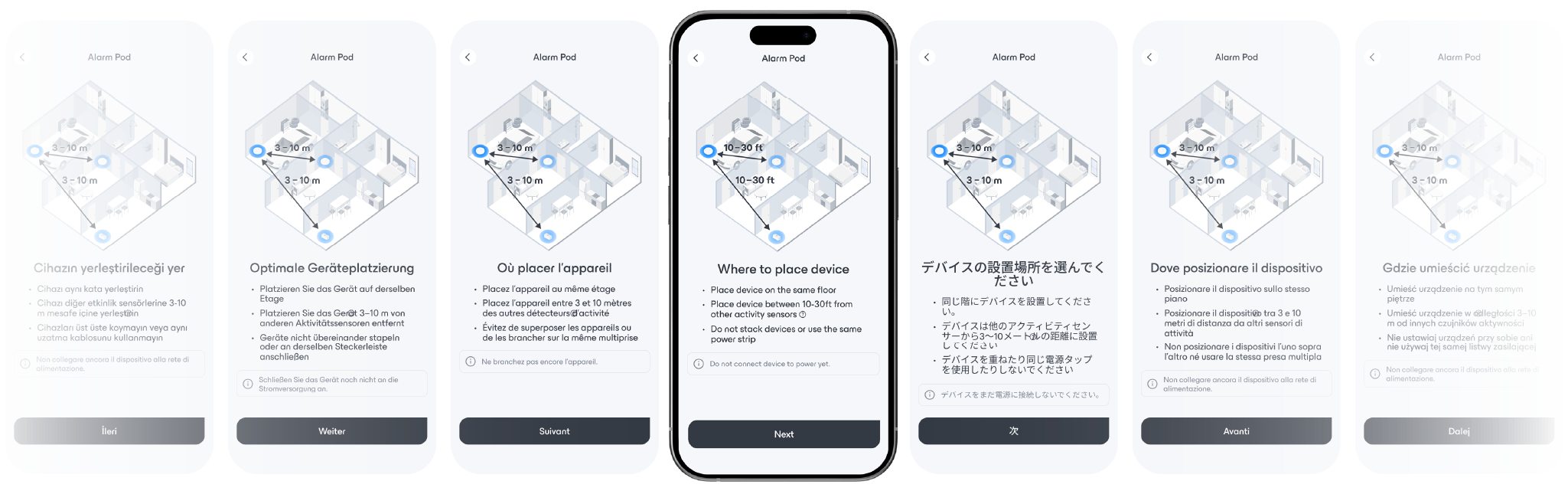

Where to place device screen in different languages

nami SDK Advantages

Faster time-to-market​

Skip months of UX, UI, and frontend development. Integrate once and go live faster.

No UI to design or maintain​

We take care of user flows, visual design, edge cases and error handling.

Seamless integration into your app​

The SDK fits naturally into your existing app with minimal development work and eliminates complex UI or flow to build on your side.

Continuous improvements included​

As we improve features, usability, and performance, your app benefits automatically — with no extra work on your side.

Lower maintenance & support costs

Less custom code means fewer issues, simpler updates, and reduced long-term maintenance.

Dedicated support​

From initial setup to long-term operation, our team is with you every step of the integration.

Integrate and experience the nami experience within your own app

PIR Motion Sensor Angled View
PIR Motion Sensor Front View

PIR Motion Sensor

Thread

General

Dimensions (H x W x D)65.0 × 44.0 × 44.0 mm (2.55 × 1.73 × 1.73 in)
Power RequirementsBattery powered 3VDC, 1 × CR2477
Battery LifetimeUp to 2 years
MaterialPC
LED1 × White Status LED
Button1 × Reset Button
Detection Range6m at 110° field of view

Network

ProtocolIEEE 802.15.4
Wireless TypeThread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +50°C (14°F ~ 122°F) | 0% ~ 90% R.H.
CertificationsFCC, CE, MIC, UL4200A, ROHS
Safety FeaturesIP20 Dust Protection
Bluetooth and Thread Logo
Keypad Angle View

Keypad

Thread

General

Dimensions (H x W x D)62.0 × 98.0 × 21.8 mm (2.44  × 3.86 × 0.86 in)
Power RequirementsBattery powered, 3× AAA
Battery LifetimeUp to 2 years
MaterialPC
LED1 × White Power Button LED
ButtonsMode, Numeric 0-9, Clear & SOS

Network

ProtocolIEEE 802.15.4
Wireless TypeThread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +50°C (14°F ~ 122°F) | 0% ~ 90% R.H.
CertificationsFCC, CE, MIC, ROHS
Safety FeaturesIP20 Dust Protection
Bluetooth and Thread Logo
Door Sensor Angle View
Door Sensor Front View

Door Sensor

Thread

General

Dimensions (H x W x D)Sensor: 50.5 × 32.0 × 21.9 mm (1.99 × 1.26 × 0.86 in)
Magnet: 27.0 × 12.0 × 12.4 mm (1.06 × 0.47 × 0.49 in)
Power RequirementsBattery powered 3VDC, 1× CR2477
Battery LifetimeUp to 4 years
MaterialPC
LED1 x White Power Button LED
Button1 x Reset Button
Max Gap Between Sensor & Magnet20mm

Network

ProtocolIEEE 802.15.4
Wireless TypeThread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +50°C (14°F ~ 122°F) | 0% ~ 90% R.H.
CertificationsFCC, CE, MIC, UL4200A, ROHS
Safety FeaturesIP20 Dust Protection
Bluetooth and Thread Logo
Angle view of SensePlug Type A with Cyan LED
Front view of SensePlug Type A with Cyan LED

SensePlug (Type A)

Wi-Fi + Thread

General

Dimensions (H x W x D)74.7 × 36.1 × 48.8 mm (2.94 × 1.42 × 1.92 in)
Power RequirementsAC 100V~ | 50/60Hz
Maximum Load15A, 1500W | General use, Resistive load
MaterialPC
LED1 × RGB Status LED, 1 x White Power Button LED
Button1 × Power Button

Network

Protocol IEEE 802.11b/g/n, IEEE 802.15.4
Wireless Type Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +40°C (14°F ~ 104°F) | 0% ~ 90% R.H.
CertificationsPSE, MIC, ROHS
Safety FeaturesIP20 Dust Protection
Class I IEC Electrical Appliance Protection
Wi-Fi, Bluetooth and Thread Logo
Angle view of SensePlug Type B with Cyan LED
Front view of SensePlug Type B with Cyan LED

SensePlug (Type B)

Wi-Fi + Thread

General

Dimensions (H x W x D)2.94 × 1.42 × 1.92 in (74.7 × 36.1 × 48.8 mm)
Power RequirementsAC 120-230V~ | 50/60Hz
Maximum Load15A, 1800W | General use, Resistive load
MaterialPC
LED1 × RGB Status LED, 1 × White Power Button LED
Button1 x Power Button

Network

Protocol IEEE 802.11b/g/n, IEEE 802.15.4
Wireless Type Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment 14°F ~ 104°F (-10°C ~ +40°C) | 0% ~ 90% R.H.
CertificationsETL, FCC, ROHS
Safety FeaturesIP20 Dust Protection
Class I IEC Electrical Appliance Protection
Wi-Fi, Bluetooth and Thread Logo
Angle view of SensePlug Type E with Cyan LED
Front view of SensePlug Type E with Cyan LED

SensePlug (Type E)

Wi-Fi + Thread

General

Dimensions (H x W x D)77.2 × 57.2 × 74.7 mm (3.04 × 2.25 × 2.94 in)
Power RequirementsAC 230V~ | 50/60Hz
Maximum Load16A, 3680W | General use, Resistive load
MaterialPC
LED1 × RGB Status LED, 1 × White Power Button LED
Button1 × Power Button

Network

Protocol IEEE 802.11b/g/n, IEEE 802.15.4
Wireless Type Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +40°C (14°F ~ 104°F) | 0% ~ 90% R.H.
CertificationsCE, ROHS
Safety FeaturesIP20 Dust Protection
Class I IEC Electrical Appliance Protection
Wi-Fi, Bluetooth and Thread Logo
Angle view of SensePlug Type F with Cyan LED
Front view of SensePlug Type F with Cyan LED

SensePlug (Type F)

Wi-Fi + Thread

General

Dimensions (H x W x D)77.2 × 57.2 × 74.7 mm (3.04 × 2.25 × 2.94 in)
Power RequirementsAC 230V~ | 50/60Hz
Maximum Load16A, 3680W | General use, Resistive load
MaterialPC
LED1 × RGB Status LED, 1 × White Power Button LED
Button1 × Power Button

Network

Protocol IEEE 802.11b/g/n, IEEE 802.15.4
Wireless Type Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +40°C (14°F ~ 104°F) | 0% ~ 90% R.H.
CertificationsCE, ROHS
Safety FeaturesIP20 Dust Protection
Class I IEC Electrical Appliance Protection
Wi-Fi, Bluetooth and Thread Logo
Angle view of SensePlug Type G with Cyan LED
Front view of SensePlug Type G with Cyan LED

SensePlug (Type G)

Wi-Fi + Thread

General

Dimensions (H x W x D)70.0 × 55.0 × 60.2 mm (2.76 × 2.17 × 2.37 in)
Power RequirementsAC 230V~ | 50/60Hz
Maximum Load13A, 2990W | General use, Resistive load
MaterialPC
LED1 × RGB Status LED, 1 × White Power Button LED
Button1 × Power Button

Network

Protocol IEEE 802.11b/g/n, IEEE 802.15.4
Wireless Type Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +45°C (14°F ~ 113°F) | 0% ~ 90% R.H.
CertificationsCE, UKCA, ROHS
Safety FeaturesIP20 Dust Protection
Class I IEC Electrical Appliance Protection
Wi-Fi, Bluetooth and Thread Logo
Alarm Pod with Cyan LED

Alarm Pod

Wi-Fi + Thread

General

Dimensions (H x W x D)95.0 × 95.0 × 35.0 mm (3.74 × 3.74 × 1.38 in)
Power RequirementsDC 5V | Max 1A
Backup Battery LifetimeUp to 3 hours
Alarm Rating98 dB
MaterialPC
LED1 × RGB Status LED
Button1 × Reset Button

Network

Protocol IEEE 802.11b/g/n, IEEE 802.15.4
Wireless Type Wi-Fi 2.4Ghz, Thread, Bluetooth 5 (For onboarding)

Operating Conditions

Work Environment-10°C ~ +45°C (14°F ~ 113°F) | 0% ~ 90% R.H.
CertificationsCE, FCC, MIC, ROHS
Wi-Fi, Bluetooth and Thread Logo
